Пневматические шаровые краны с 3-ходовой резьбой
Пневматический шаровой кран DELCO доступен в конфигурациях с L- или T-образным портом и имеет стандартный режим управления двойного действия, также доступен вариант с одинарным действием. Он изготовлен из нержавеющей стали 304 или 316 и работает при входном давлении воздуха от 2,5 до 8 бар. Клапан имеет внутреннюю резьбу минимум 1/4 дюйма и поставляется с седлом из ПТФЭ по умолчанию, обеспечивающим устойчивость практически ко всем жидкостям. Он подходит для применения в условиях повышенного рабочего давления и температуры.
Модель: DK66-4T
Диапазон размеров: 1/4″ – 2″
Диапазон давлений: 1,0 – 1,6 МПа
Материал: Нержавеющая сталь 304/316

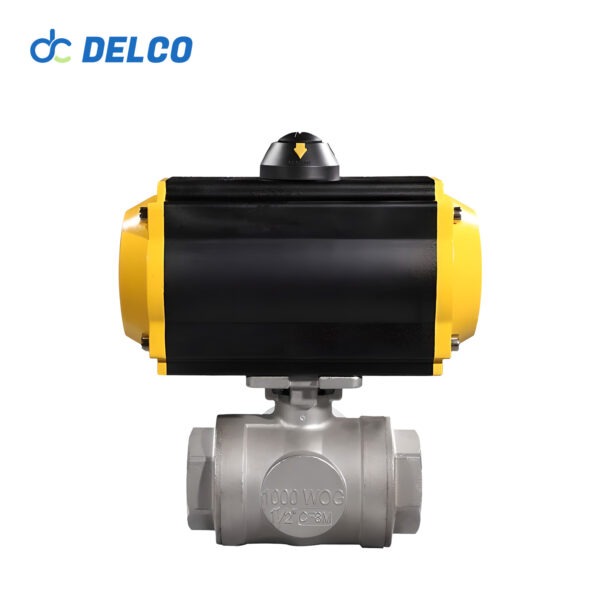

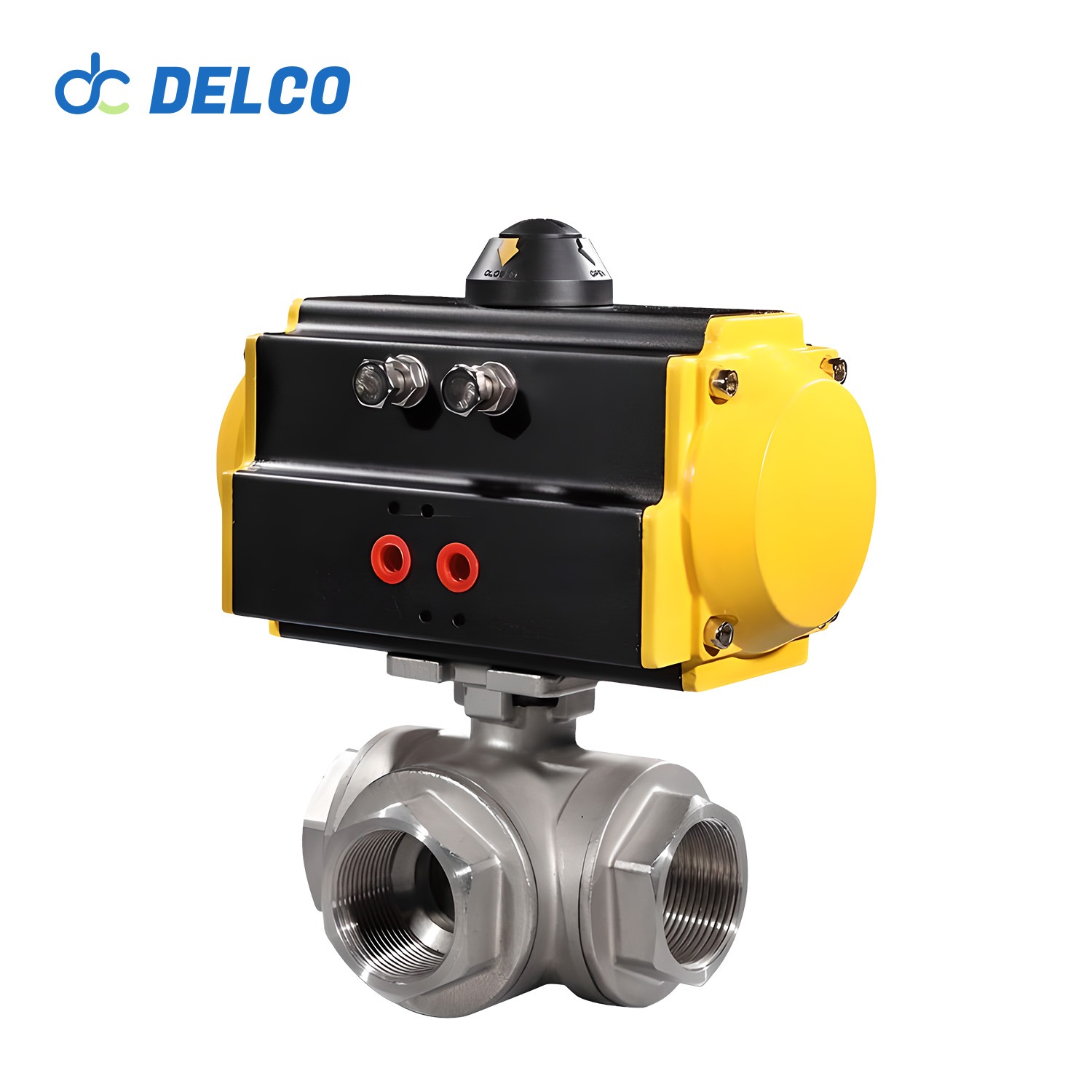

DELCO Pneumatic 3 Way Thread Ball Valve
The valve features a long service life, eco-friendliness, and easy installation. It is available with spring return (single acting) and double acting actuators. You can choose between 2-way air actuator ball valves or 3-way air actuator ball valves in T type and L type configurations. Operating with a quarter-turn rotation, the valve is constructed from stainless steel and plastic materials. Connection types include threaded, flange, tri clamp, and welding, making it versatile for various applications. It is suitable for a wide range of media, including water, oil, air, and gas.
Technical Parameters of Valve Actuator
| Double acting | Air to open, air to close, air supplier failure to keep the current position |
| Single acting N/C | Air to open, interrupt air to close, air failure to close |
| Single acting N/O | Air to close, interrupt air to open, air failure to open |
| Optional accessory | Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve. |
Technical Parameters of Valve Body
| Valve Body | Valve components | ||
| Size Range | DNO8-DN100 | Sealing material | Stainless Steel |
| Body Material | SS304 SS316 SS316L | Core Material | Stainless Steel 316 |
| End Connection | Threaded, Butt Welded | Stem Material | PTFE:30℃~180℃PPL:30℃~250℃ |
| Structure | 3 Way L-port/ T-port | Applicable media | Control of Water, Air, Gas,Oil, Liquid, Steam |
Air source processor: Combines filtering, pressure reduction, and lubrication functions, ensuring stable outlet pressure. Available in two-piece assemblies for filtering compressed instrument air and three-piece configurations for added lubrication.
Pneumatic solenoid valve: Regulates the opening and closing of pneumatic valves by magnetizing and demagnetizing to direct gas flow based on voltage signals. Offers precise control over valve operations, commonly used for managing gas source and circuit flow.
Limit switch: Detects valve status and outputs signals for open or closed positions. Critical in automatic control systems, confirming and executing subsequent programs, providing valve interlock protection, and indicating remote alarms within the system.
Valve positioner: Crucial for precise control over valve positioning in pneumatic control valves, comparing valve stem displacement and controller output signals, adjusting the actuator output signal accordingly.
Manual device: Complements pneumatic actuator assemblies, facilitating manual or pneumatic operation for butterfly and ball valves with a 90° opening. Ensures versatility and flexibility in valve operation, allowing for manual and automated control as needed.
