DELCO Stainless Steel Pneumatic Filling Valves
A pneumatic filling valve is a device that controls the flow of liquids or gases using pneumatic principles, widely used in automated production lines in industries such as food, beverage, and chemicals. Because it operates by using compressed air to open or close the valve, it can achieve efficient and precise filling operations. The pneumatic filling valve is known for its simple structure, easy operation, excellent sealing performance, and durability, significantly improving production efficiency and product quality.
Model: pneumatic filling valve
Size Range: 1/2″ to 2″
Pressure Range: 0~1.6MPa
Material: Stainless Steel
Pneumatic Filling Valves
Widely used in filling machinery, especially suitable for viscous, paste and easy foaming liquid filling.
Fast filling speed, accurate and stable. Exquisite and compact, convenient for piping layout.
Special sealing design at the bottom of the filling head can realize drip-free filling.
The chamfered structure at the bottom of the filling head has the function of guiding and positioning, and it can be submerged for filling.
Pneumatic filling technical parameters:
| Single acting | Pipe pressure: 0-7bar， control pressure：3.8bar~4.2bar |
| Double acting | Pipe pressure: 0-7bar， control pressure：3bar~3.5bar |
| Valve Material | CF8（SS304）/CF8M（SS316） |
| Seal material | PTFE |
| Medium temperature | -10℃~+120℃ |
| Fluid temperature | -20℃~+60℃ |
| Nominal pressure | 1.6MPa |

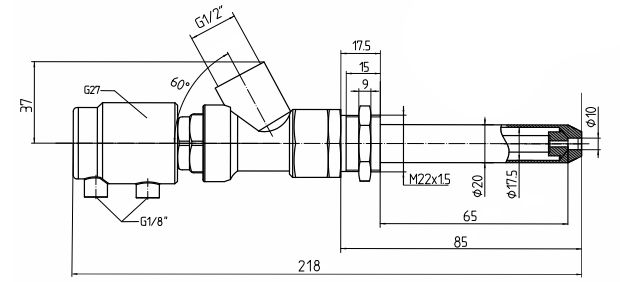

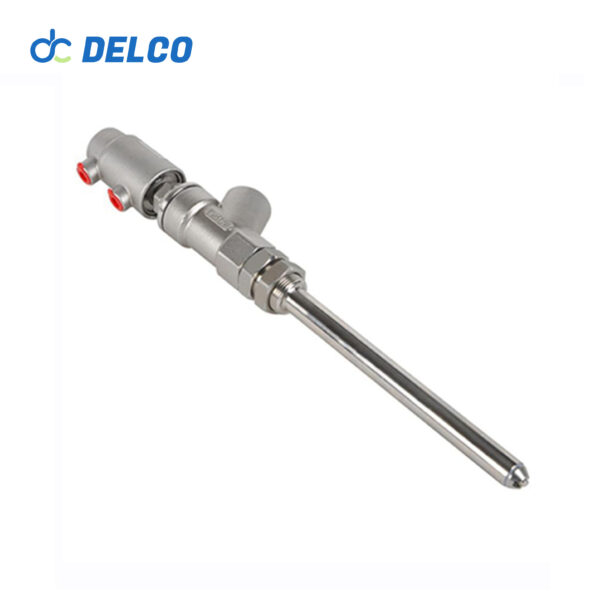

Pneumatic filling valve (short)

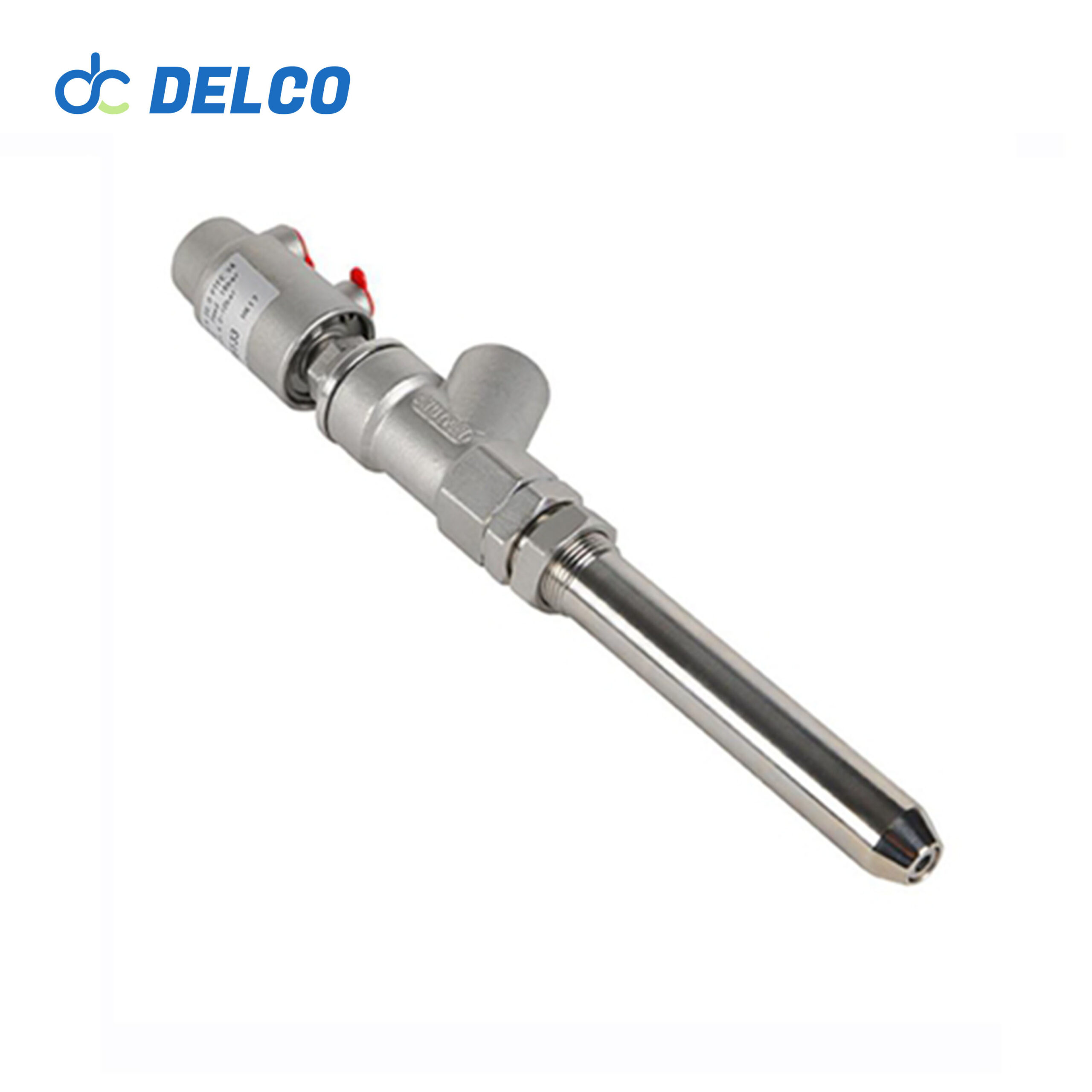

Pneumatic filling valve (long)
